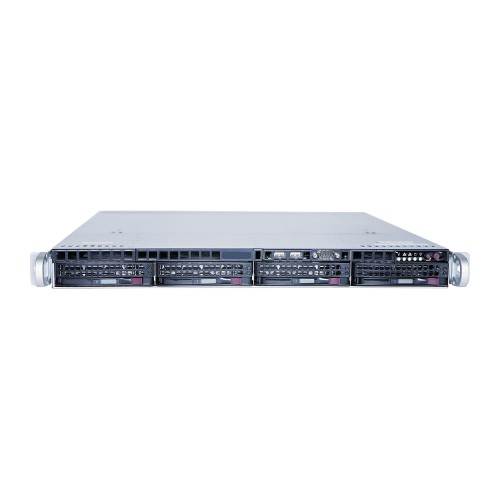

1U-MSERVER, Wisenet SSM Management Server

1U-MSERVER, Wisenet SSM Management Server

The 1U-MSERVER is an enterprise-grade rackmount server built to run Wisenet SSM video management software. It is designed for logistics warehouses, manufacturing plants, retail chain head offices and residential complex management centers that need to monitor dozens or hundreds of cameras from a single point. In situations where a standard desktop PC cannot run around the clock and a failure means hours of lost footage, this server is the answer.

Every unit is soak tested under load before shipping and built with hardware redundancy from the ground up, so a power supply or system drive failure doesn't mean your whole recording system goes down.

Key Features

• Redundant 300W Power Supply: If one of the two independent power units fails, the server keeps running. The system doesn't go blind while waiting for a technician. 80 Plus Gold certification keeps it efficient even in factory environments prone to power fluctuations.
• RAID1 System Drive: Two 240GB SSDs are mirrored in a hot-swap RAID1 configuration. Drives can be replaced without powering down the server; if one SSD fails, the operating system and settings remain intact.
• 4 Hot-Swap Drive Bays and 2TB SATA Database Drive: The database drive that indexes camera recordings can be swapped without shutting the server down, reducing downtime in high-traffic setups like production lines or POS-adjacent monitoring stations.
• Intel Xeon E 6-Core/12-Thread CPU with 16GB DDR4 ECC Memory: ECC memory self-corrects bit errors, preventing unexpected crashes especially in systems that run non-stop. Processing power is sized to handle multi-channel recording alongside simultaneous live viewing.
• 5-Year Next Business Day Warranty: If the server fails, the wait is one business day, not one week — keeping your security team's visibility gap short.
• IPMI Remote Management: Hardware status can be monitored and the server remotely restarted without a physical site visit, simplifying oversight of servers at distant branch locations.

In logistics operations, it serves as the backbone for control rooms monitoring everything from gate entries to production lines on a single screen. Retail chains use it at head office to aggregate footage from all branches through SSM, while residential complex management centers deploy it as the main server for multi-block security rooms. It ships pre-configured to run SSM on Windows Server 2019, requiring no additional OS setup after installation.

The 1U-MSERVER weighs 17 kg and measures 550x437x43 mm, fitting into a standard rack cabinet. Tell us how many cameras you're planning and how many days of retention you need — Securiturk's engineering team will size the right server and storage configuration for your project and prepare a quote.
