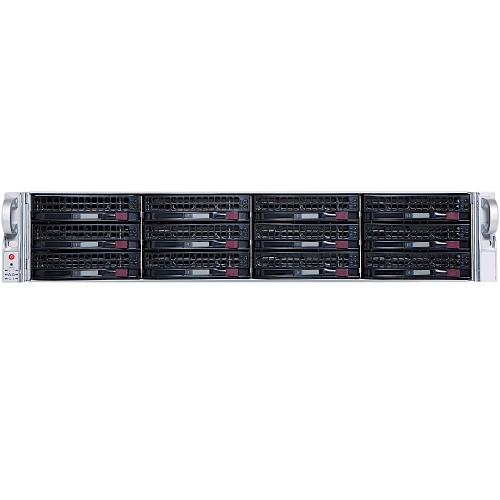

BRS-12BAY-SERVER, 2U 12-Bay Rackmount Network Video Recording Server

BRS-12BAY-SERVER, 2U 12-Bay Rackmount Network Video Recording Server

The BRS-12BAY-SERVER is a 2U rackmount recording server built for medium to large VMS deployments where hundreds of cameras record around the clock. It's suited to server rooms in logistics hubs, factory control centers, or mall data centers - sites where a single hardware failure simply cannot be allowed to stop recording. With redundant power supplies, battery-backed hardware RAID, and IPMI remote management, it's built for facilities where recording downtime is a cost that can't be undone.

Key Features

• Redundant 300W/800W Certified Gold power supply: If one power module fails, the server keeps running; a night-shift PSU failure won't cost you recording, and technicians can swap the unit cold during business hours.
• Battery-backed hardware RAID5 (with 0, 1, 1+0, 6, 50, 60 support): A failed drive gets rebuilt without data loss; the battery-backed cache also protects pending writes during a sudden power cut.
• 12 hot-swap drive bays, up to 192TB RAW storage: Enough capacity in a single chassis to keep 90 days of footage from close to 100 cameras across a warehouse site, removing the need for a separate storage unit.
• Intel Xeon E 6-core/12-thread CPU + 16GB DDR4 ECC memory: Multi-channel live viewing, recording, and VMS management software run on one box without bottlenecking; ECC memory corrects bit errors, reducing crash risk during long uptime.
• IPMI remote management: Monitor hardware health, reboot, or diagnose issues over the network without walking into the server room; useful for tracking a branch server from a different city.
• 2 x M2 256GB SSD in RAID1 for the OS drive: The operating system is kept separate from the recording drives, so a full or failed storage array doesn't affect server boot-up or VMS software.
• 5-year Next Business Day warranty: Hardware failures get next-business-day service, minimizing downtime risk at critical sites.

Logistics operators use it to centralize recording from hundreds of cameras spanning warehouse gates to production lines. Retail chains consolidate multiple branch feeds at a regional server room, while site management companies combine security, parking, and common-area cameras on one reliable backbone. In factory environments, the battery-backed RAID and redundant power supply keep production-line, warehouse, and perimeter camera recording protected against power fluctuations.

Contact the Securiturk team for capacity planning, RAID configuration, and VMS integration support, and request a quote tailored to your facility.
