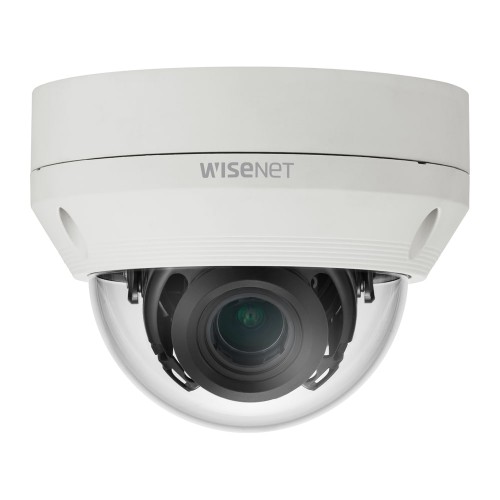

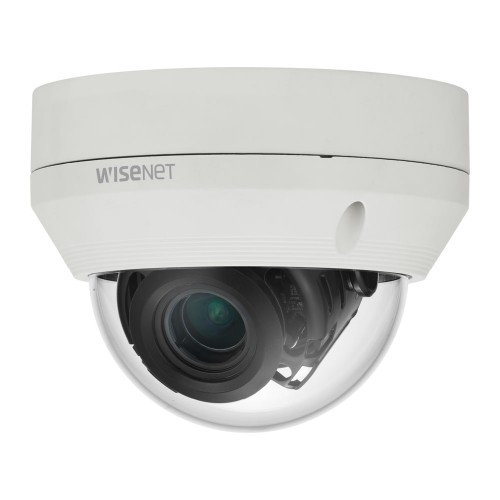

HCV-6080, 2MP IK10 Vandal-Resistant Dome Analog Camera

HCV-6080, 2MP IK10 Vandal-Resistant Dome Analog Camera

The HCV-6080 is a 2MP analog dome camera built for locations exposed to rough handling - warehouse loading ramps, parking lot entrances, production line perimeters, or retail checkout counters. Its IK10 impact rating and IP66 housing protect against both deliberate tampering and outdoor exposure. Supporting AHD, TVI, CVI, and CVBS outputs in a single unit, it can be deployed directly regardless of the existing DVR infrastructure, without swapping equipment.

Key Features

• IK10 impact resistance: In warehouse aisles where forklifts or pallets pose a collision risk, the housing withstands impact, reducing the chance of the camera going blind due to breakage.
• IP66 housing and -30°C to +55°C operating range: At open parking entrances or exterior loading doors exposed to rain, dust, and frost, no additional protective enclosure is needed.
• 120dB WDR: At a glass-backed store entrance or a doorway hit by direct sunlight, both the person outside and inside remain clearly visible, eliminating silhouette issues caused by strong backlight.
• 3.2 ~ 10mm motorized varifocal lens: The field of view is adjusted on site during installation based on mounting height, so there's no need to swap lenses whether you're covering a wide corridor or a narrow checkout area.
• 0.11 Lux color / 0.01 Lux B/W low-light performance: People and movement remain distinguishable even at poorly lit warehouse back doors or perimeter walls at night.
• Up to 500m coaxial signal transmission (5C2V cable): On large factory sites, this reduces the need for signal boosters between the camera and the control room over long cable runs.

Typical deployment points include loading ramps and forklift-heavy corridors in logistics facilities; production line perimeters and raw material entry points in factories; checkout counters and stockroom-to-sales-floor transitions in retail chains; and perimeter walls and vehicle entry barriers in gated communities. For businesses looking to upgrade resolution without replacing their existing analog DVR investment, support for four coaxial protocols in one camera keeps installation costs down.

Get in touch with our technical team to confirm compatibility with your existing DVR, plan camera counts and storage capacity, and receive a tailored quote for your project.
