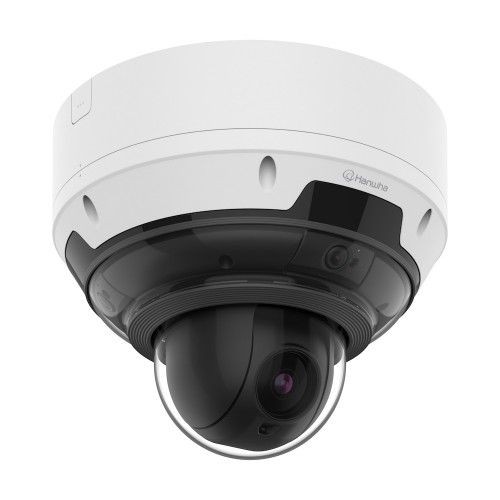

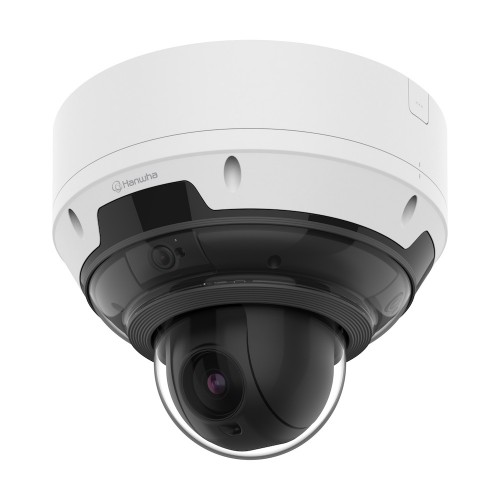

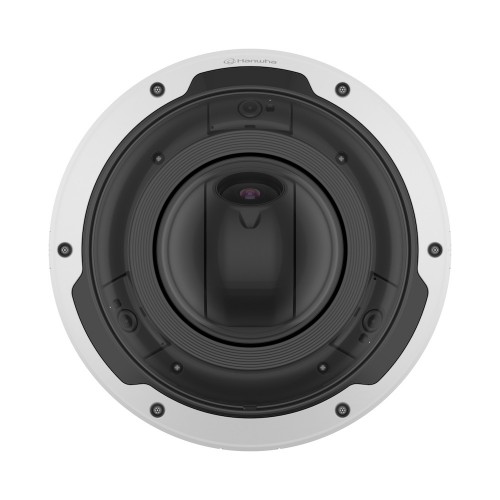

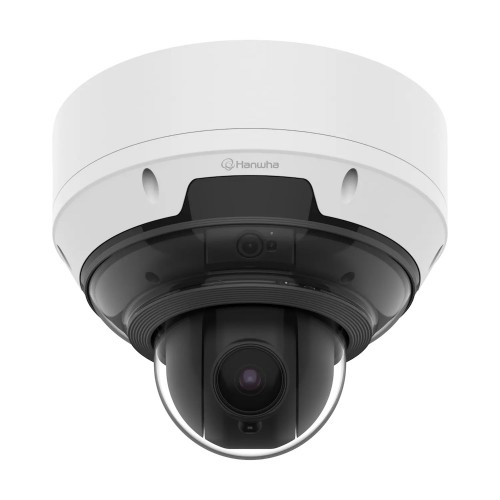

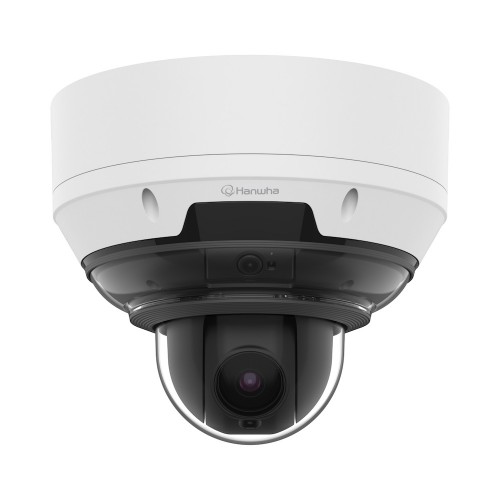

PNM-C19183RVTP, 3CH + PTZ, AI, IR Multi Directional Outdoor Camera

PNM-C19183RVTP, 3CH + PTZ, AI, IR Multi Directional Outdoor Camera

The PNM-C19183RVTP is a system powered by a PTZ camera, providing a 15-megapixel 360° field of view and 4-megapixel 18x optical zoom. It provides analysis (analysis) events based on an AI engine: In addition to object detection and classification (Person/Face/Vehicle/License Plate), it also generates information about object attributes. This allows users to search for an object or attribute that identifies it within recorded images, such as people in red shirts.

The camera provides a total resolution of 15MP with 3x 5MP sensors. The 3-channel 5MP cameras feature 2.4mm lenses (FoV H: 123°, V: 91°).

The camera also includes a range of built-in video analysis capabilities. Using 3 lenses, it can capture high-quality 5MP images of adjacent areas, significantly reducing the costs typically associated with installing 4 separate cameras.

This camera is a perfect, cost-effective solution for retail, airport, and city surveillance projects. It's easy to install, lets you monitor a larger area with just one camera, and requires only one IP address and one VMS* license.

KEY FEATURES

• Wisenet P series network vandal outdoor Multi-Directional camera

• Camera Specifications:
• 3CH x 5MP @ 30FPS and 4MP PTZ with 18x Zoom
• 3CH Fixed Lens 2.4mm (FoV H: 123°, V: 91°)
• 120dB WDR
• IR viewable length: 15m (49ft)
• Analytics events based on AI engine:
• Classified object types: Person, Face, Vehicle, License plate
• Attributes:
• Vehicle: Type and color (car, bus, truck, motorcycle, bicycle)
• Person: Upper and bottom clothing color
• IVA (Intelligent Video Analytics):
• Virtual line/Area
• Enter/Exit
• Loitering
• Direction
• Intrusion
• Appear/Disappear
• Business Intelligence based on AI engine:
• People counting
• Vehicle counting
• Queue management
• Heatmap
• AI Technologies:
• WiseNR II (using AI engine)
• WiseStream III (based on AI engine)
• I/O Box compatibility
• TPM with FIPS 140-3 Level 3
• Storage: micro SD card 512GB x2
• Durability and Ratings: IP66/IK10/NEMA 4X
• Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)
• Power: PoE++
• Hard-coated dome bubble
• PoE++ Injector included

Hanwha Vision is formerly known as Hanwha Techwin

AI based object detection and classification

The new 4CH AI Multi-directional camera detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals.

Smart zoom

When the multi-directional camera detects an event, it automatically links to PTZ camera which carries out zoom-in and track functions.

Advanced Hand over

An event (Line crossing/Appear/Disappear/etc.) can trigger PTZ execution which is tied to the object that triggered the event.
