SBP-004WMW, White PTZ Camera Wall & Pole Mount Bracket

SBP-004WMW, White PTZ Camera Wall & Pole Mount Bracket

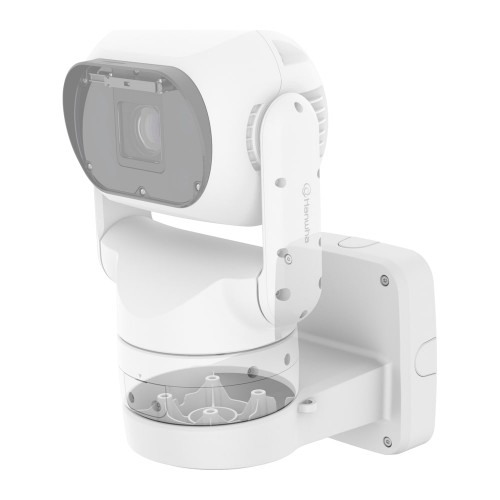

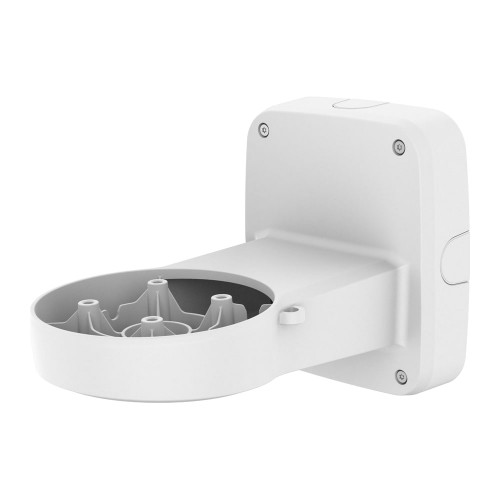

The SBP-004WMW is an aluminum wall and pole mount bracket designed for heavy-duty white PTZ cameras. Compatible with the TNP-A6550RW, TNP-A7430RW, and TNP-A9430RW models, it's used to fix PTZ cameras firmly at port facilities, manufacturing plants, highway intersections, and gated communities with wide-area surveillance needs. Even a ruggedized outdoor camera can suffer from image blur if the mounting point is weak — this bracket removes that risk entirely.

Key Features

• 15 kg maximum load capacity: Supports the full weight of a heavy PTZ camera body plus accessories such as a sunshield or extra housing, without needing a separate support arm.
• Aluminum housing with RAL9003 white finish: Corrosion-resistant for outdoor use, and the color matches the camera body so it blends into the building façade.
• TR30 mounting screw standard: Direct compatibility with Wisenet PTZ cameras means a fast installation without extra adapters or custom fitting.

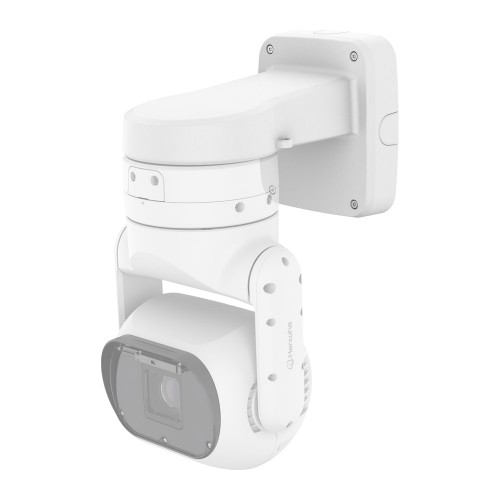

• Reversible design: The camera can be mounted upright, canted, or inverted — for example, mounted upside-down under a warehouse eave to shield it from rain while still optimizing the viewing angle.
• Supports both wall and pole mounting: Direct wall fixing is built in; pole mounting requires the SBP-150PMW heavy-duty pole adapter, which is worth clarifying at the quoting stage to avoid delays on site.
• Lightweight 3800g body, 360x210x245 mm: Compact and light enough for a single technician to carry and install on site.

This bracket is commonly used on loading dock canopies in logistics warehouses, main entrance gates of factory yards, and parking lot poles in shopping centers or gated communities. Because wide-scanning PTZ cameras are sensitive to wind and vibration, the aluminum construction and 15 kg load rating matter more than they might seem. If pole mounting is planned, remember to add the SBP-150PMW to your parts list.

Contact the Securiturk technical team for the right mounting solution and accessory list for your specific camera model and project.
