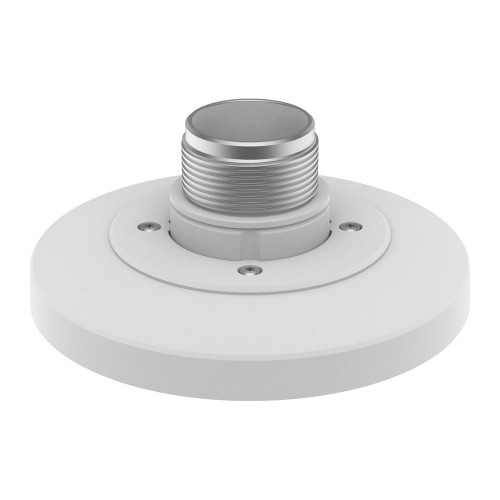

SBP-140HMW, Hanging Mount Adaptor

SBP-140HMW, Hanging Mount Adaptor

The SBP-140HMW is a hanging mount adaptor designed for ceiling-suspended installation of QNV-C6083R, QNV-C8083R and QNV-C9083R dome cameras. It is a practical solution for high warehouse entrances, retail suspended ceilings, or any location where a camera must be positioned at a specific angle by hanging it below the ceiling surface.

• Aluminum + PC housing: Combining aluminum and polycarbonate materials, the adaptor delivers mechanical durability while keeping weight low at just 240 grams, adding no meaningful load during installation.
• Load capacity up to 3 kg: Reliably supports compatible dome cameras such as the QNV-C6083R, QNV-C8083R and QNV-C9083R in hanging position, eliminating sagging or tilting risks over time.
• TR20 mount screw size: Matches directly with the mount screw standard of compatible Wisenet dome cameras, so no additional adaptor is needed and installation is completed in a single step.
• White RAL9003 finish: Blends naturally with white suspended ceilings and wall surfaces, keeping the camera mount visually unobtrusive.
• Compact footprint: At ø155x65 mm, it fits comfortably into tight ceiling voids and low-clearance spaces.

It is commonly used in retail chains for suspended ceiling points above checkout areas or between aisles, in office building entrance lobbies, and in warehouse management offices where cameras need to be hung rather than flush-mounted to the ceiling.

The SBP-140HMW is compatible only with the listed QNV-C6083R, QNV-C8083R and QNV-C9083R models; compatibility with other camera models is not guaranteed. Contact the SECURITURK team for project-based mounting and compatibility questions and to request a quote.
