SBP-150NBW, Camera Cabinet Enclosure

SBP-150NBW, Camera Cabinet Enclosure

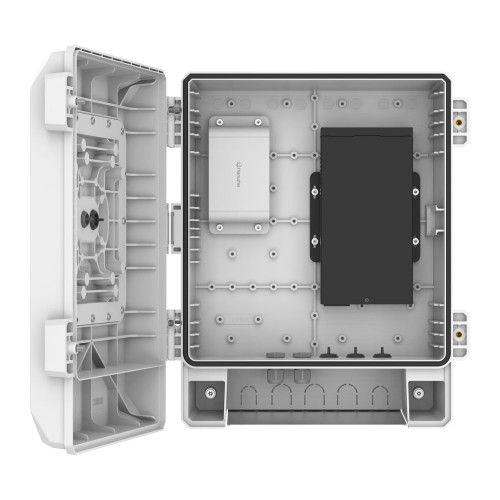

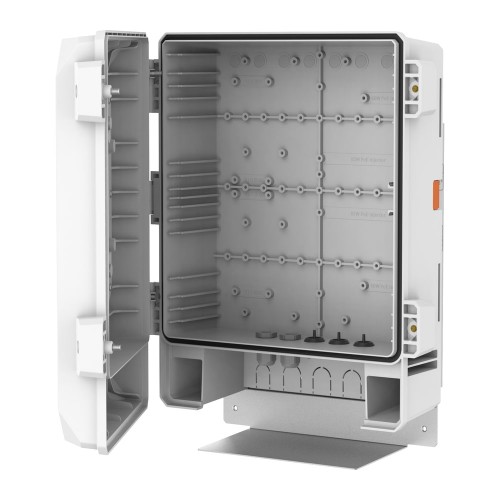

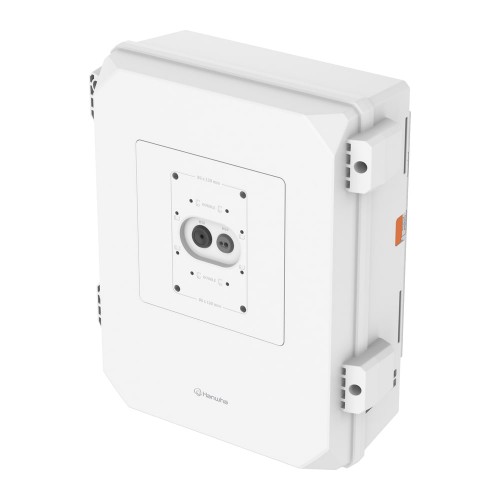

SBP-150NBW is a cabinet accessory made of PC (polycarbonate) and aluminum, designed to protect network cameras and their connected equipment from harsh outdoor conditions. It brings the camera body together with additional gear such as injectors, switches, or power supplies into a single enclosure. It is well suited for warehouse loading docks, factory yard entrances, or cold storage front areas where both temperature swings and moisture create real risks for electronics.

Key Features

• IP66 protection keeps water out even during heavy rain or high-pressure hose-downs common on production lines, and the cabinet can be washed down directly.
• IK10 impact resistance withstands deliberate blows in warehouse ramp areas with heavy forklift traffic or street-facing installations exposed to vandalism.
• NEMA 4X certification adds corrosion resistance for food facilities with chemical vapor exposure or port-side installations with salty air.
• An operating range of -40°C to +65°C allows the same cabinet to be used on a cold storage exterior wall as well as a rooftop point exposed to direct sun.
• The built-in air vent for humidity control prevents condensation buildup inside the enclosure, reducing the risk of lens fogging and electronic failure.
• A maximum load capacity of 15 kg allows mounting the camera body together with additional brackets or sunshields in the same enclosure.
• Conduit holes of 12.7mm (1/2", M20) and 19.1mm (3/4", M25) simplify integration with existing site cable routing.

SBP-150NBW is designed to work with mounting accessories SBP-250WMW, SBP-400WMW, and SBP-150PMW, as well as camera models XND-C6083RV, PNV-A9081R, XNO-6083R, and QNV-C8083R. Its RAL9003 white body blends easily with building facades in retail chain and site management projects. At 420x360x163.1mm and 3.96kg, it integrates into existing wall or pole mounts without adding significant load.

It is commonly chosen for protecting loading dock cameras in logistics warehouses from freezing winter conditions, factory line cameras from wash-down water, and retail exterior cameras from both weather and deliberate tampering. In residential and commercial site management, long-term reliability of open parking and entrance gate cameras often depends on this kind of outdoor enclosure.

Let us know which camera model and conduit setup you're planning, and the SECURITURK team can prepare a mounting solution proposal tailored to your project.
