SBV-138TMW, Tilt Mount Bracket

SBV-138TMW, Tilt Mount Bracket

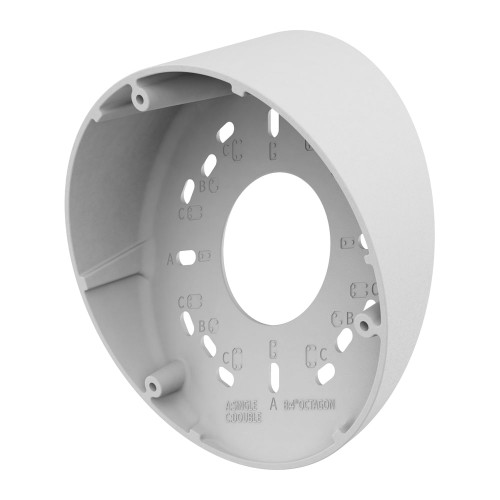

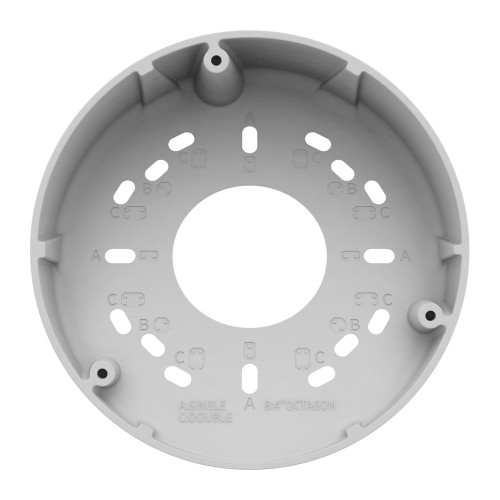

SBV-138TMW is an aluminum tilt mount bracket that allows dome network cameras to be installed at an angle on walls or ceilings. Instead of fixing the camera flat against a surface, this bracket lets installers angle the camera body toward the exact point they need to cover — entry doors, corridor corners, or loading ramps where a straight mount simply won't give the right field of view.

Key Features

• Aluminum housing: Lightweight yet durable enough for long-term outdoor use without adding excess load on the mounting surface.
• 220 g weight: Keeps the total load on the mounting point low, even with the camera attached.
• White finish (RAL9003): Blends in on light-colored surfaces such as retail storefronts, office corridors, or painted warehouse walls without standing out.
• ø137.9 x 56.8 mm dimensions: Compact enough for tight installation spots like canopy edges or suspended ceiling borders.
• TR20 mounting screw: Installed with a standard torx driver, so field teams don't need to carry special tools.

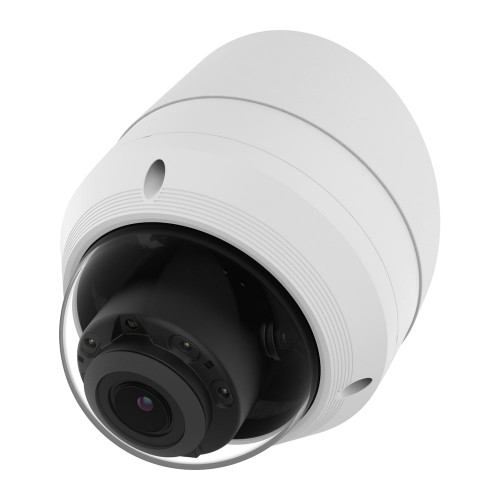

SBV-138TMW is compatible with Hanwha Vision QNV-6082R, QNV-8080R, QNV-6072R, QNV-7082R, and LNV-6072R dome cameras. It's a practical fit for logistics warehouses covering ramp entrances at an angle, factory floors monitoring corridor intersections, or retail chains needing an angled view over checkout counters. Site and facility management teams also use it where building entrances need to be monitored from a cross angle rather than head-on.

This bracket is designed specifically for the camera models listed above; please confirm compatibility with our team before pairing it with a different dome model. Contact SECURITURK's technical team for a project-specific mounting recommendation and quote.
