SECL-WL1856-IPPOEPL-M, White-Light LED IP Illuminator

SECL-WL1856-IPPOEPL-M, White-Light LED IP Illuminator

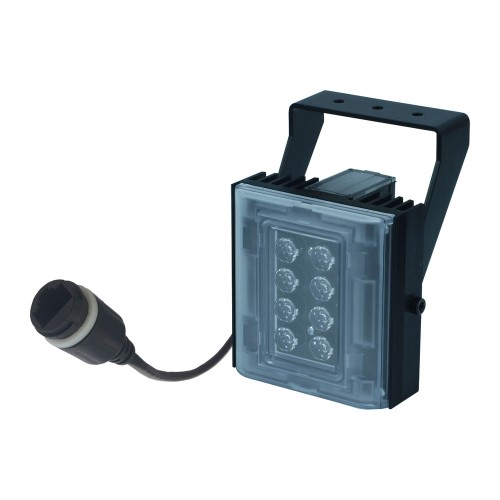

The SECL-WL1856-IPPOEPL-M is a network-connected white-light LED illuminator designed to keep camera footage sharp and colored after dark. It suits warehouse entry gates, production line perimeters, open parking lots, or site boundary walls where infrared-only cameras fall back to black-and-white and lose usable detail at night. Interchangeable diffuser lenses let a single unit adapt from narrow corridors to wide open yards.

Key Features

• Four interchangeable diffuser lenses (10°, 30°, 60°, 95°): The 10° lens reaches up to 20 meters for narrow warehouse aisles, while the 95° lens covers wide yards or loading docks up to 62 meters. One product adapts to multiple installation scenarios, reducing stock variety.
• IEEE802.3at PoE+ powered: The 26W draw is supplied over a single network cable, eliminating the need for separate power runs. The unit can be managed remotely from the switch room or camera enclosure.

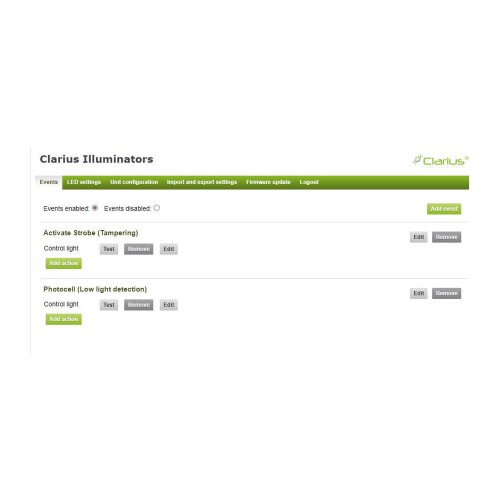

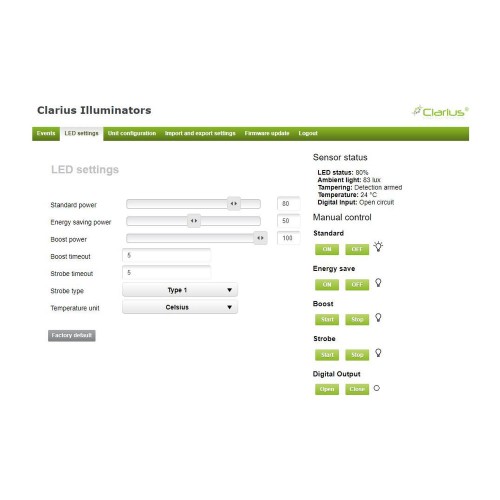

• Web-browser setup, no software required: Installers can adjust the photocell threshold (20-70 lux), illumination intensity (10%-100%), and pulse modes directly from a browser, simplifying on-site fine-tuning for each location.
• IP66 and IK09 rated housing: Protected against rain, dust, and pressure washing, with impact-resistant construction suited to storefronts or factory yards exposed to vandalism risk.
• -50°C to 60°C operating range: Maintains performance on the exterior wall of a cold storage facility or a sun-exposed factory wall without derating.
• CleanLITE-coated polycarbonate front window: Reduces dirt buildup on the lens that would otherwise cause light loss, lowering outdoor maintenance frequency.
• Vibration/knock sensor and photocell: Software-adjustable sensitivity triggers automatically with ambient light changes and can flag physical tampering.

Typical deployment points include loading docks and truck gates in logistics facilities, production line perimeters and material yards in factories, parking lots and building exteriors for retail chains, and boundary walls or vehicle gates for site management. It is particularly useful in projects where existing IR cameras fail to deliver usable color footage or license-plate detail at night. The 6500K color temperature and 74-80+ CRI make nighttime recordings more suitable for reporting and evidentiary use.

Weighing 1.05 kg and shipped with a powder-coated stainless steel wall mount, this illuminator carries a 5-year warranty. Contact the Securiturk team for lens and mounting configuration suited to your project.
