SGR-1HCK80, 125KHz Card Reader and Keypad

SGR-1HCK80, 125KHz Card Reader and Keypad

SGR-1HCK80 is a card reader and keypad controller that can work both alone and connected to access control panels via the wiegand interface. It can also be used outside the building with its IP68 body structure. It is eye-catching with its ice blue backlit, shiny crystal keys.

Its metal body makes the reader suitable for anti-vandal applications. It offers a capacity of 2000 users when used alone. It can be used as PIN, Card, PIN + Card.

Main Features

• Body Material Metal

• Body Color Gri
• Card Reading Frequency 125KHz, EM
• Detection Aperture 20-60mm
• Contact Type Form C
• Standby Current ≤30mA
• Operating voltage 12VDC
• Switching Current ≤1A
• Door Opening Time 0-99sn
• Short Circuit Protection Time ≤100μs
• Operating Temperature Range -45°C~60°C
• Operating Humidity Level 10% to 90% RH
• Dimensions ∅80 x 20 mm

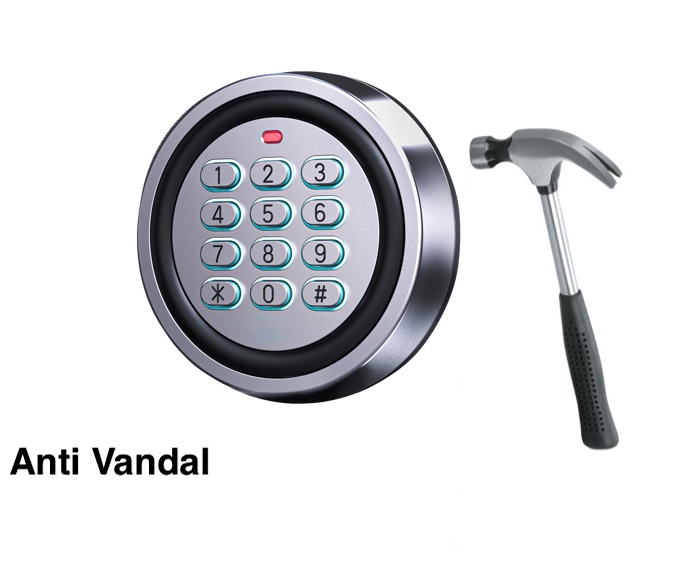

Metal body and shock resistant.

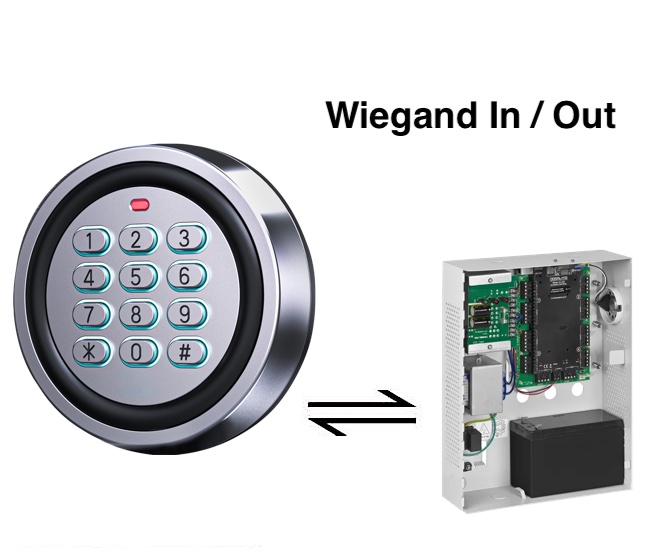

It can be work with access control panels with Wiegand interface or a second reader can be connected.

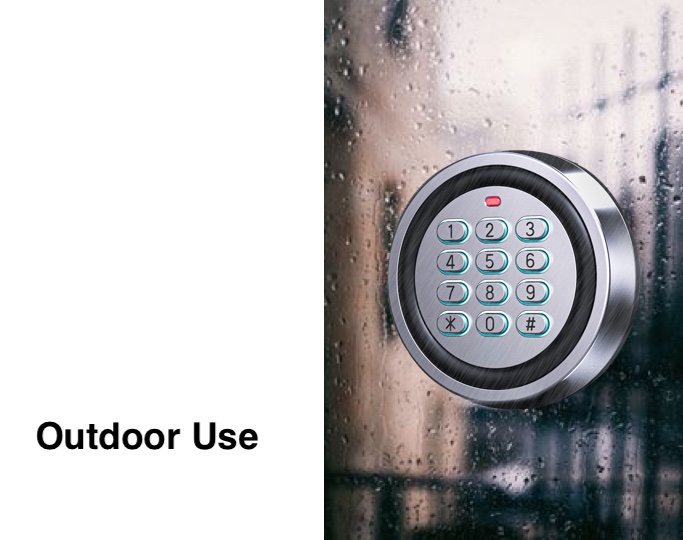

It is in IP68 standard. It is also used outside the building.
