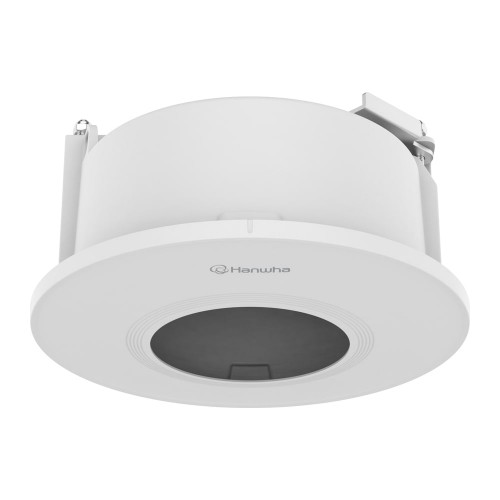

SHD-1201FPW, In-Ceiling Mount Bracket

SHD-1201FPW, In-Ceiling Mount Bracket

The SHD-1201FPW is a mounting accessory designed to recess-mount compatible QNV-C8013R and QNV-C8023R dome cameras into suspended ceilings. It is used in retail stores, offices, and site management projects where the camera needs to be hidden within the ceiling instead of protruding below the surface. Made of PC (polycarbonate) and aluminum with a white (RAL9003) finish, it blends into standard ceiling tiles without drawing attention.

Note that this is a mounting bracket only — it does not include the camera itself, and it is only intended for use with compatible dome camera models.

• 10-70 mm ceiling thickness range: Fits drywall, acoustic panels, and other common suspended ceiling materials of varying thickness, avoiding the need for different brackets across a retail chain with inconsistent ceiling types.
• 2 kg maximum load capacity: Safely supports compatible QNV-C8013R and QNV-C8023R dome cameras; the manufacturer also notes that the ceiling panel itself should support up to 3 kg, so panel condition should be checked before installation.
• TR20 screw mounting: Allows quick installation and removal with a standard torx screwdriver, so cameras can be serviced or swapped without re-cutting the ceiling.
• 12.7 mm (1/2") and 19.1 mm (3/4") conduit holes: Compatible with M20 and M25 conduit fittings, keeping cabling tidy and out of sight within the ceiling void.
• ø180x100.7 mm size, 676.4 g weight: A compact footprint that fits into tight ceiling cavities.

Retail chains use this bracket to keep checkout and entrance areas visually clean by recessing the camera into the ceiling. Offices and reception areas benefit from the discreet finish, and property managers of common areas with suspended ceilings can use it to keep cabling and camera housings out of view.

Compatibility beyond QNV-C8013R and QNV-C8023R is not specified by the manufacturer, so please confirm fit before ordering for other camera models. Contact the SECURITURK team for a quote on your mounting accessory needs.
