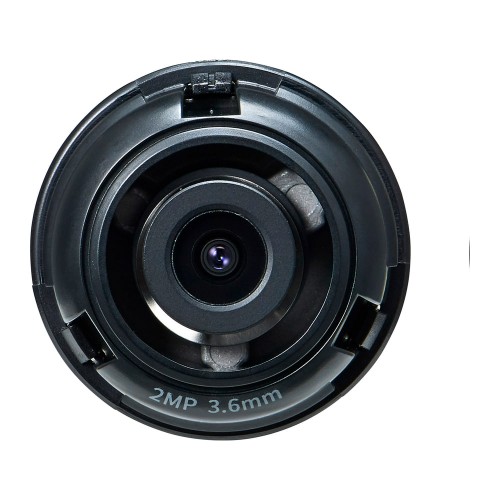

SLA-2M3600P, 2MP 3.6mm Fixed Lens Module for PNM-9320VQP

SLA-2M3600P, 2MP 3.6mm Fixed Lens Module for PNM-9320VQP

The SLA-2M3600P is a 2 megapixel, 3.6 mm fixed focal lens module designed for the lens heads of Wisenet PNM-9320VQP multi-sensor cameras. Multi-sensor cameras require a separate lens for each direction, and this module is used to change the field of view of a channel in an installed system or to replace a faulty lens head. It suits wide-angle points such as warehouse intersections, parking lot entrances, or shopping mall corridors.

Key Features

• 1/2.8" 2MP CMOS sensor: 1945x1109 effective pixels deliver balanced image quality matched to the other channels on the PNM-9320VQP.
• 3.6 mm fixed focal lens, F2.0: No focus adjustment is needed on site, so the technician completes the mounting without wasting time in the field.
• 94.8° horizontal field of view: A single head can cover a fairly wide area such as a warehouse aisle or intersection, reducing the need for additional cameras.
• 0.055 Lux (F2.0, 1/30sec) minimum illumination: In both color and B/W mode, footage is captured without image loss in low light, for example at an open-air parking entrance after sunset.
• -90°~+90° pan, +22~+84° tilt, -180°~+180° rotation: The lens head can be aimed precisely at the target point after installation, allowing the view to be taken from the desired angle rather than straight down the pole.
• Ø35.5x35.9 mm size, 30 g weight: A compact module that fits the PNM-9320VQP body cleanly without adding extra load.

This module is not a standalone camera; it only works together with the PNM-9320VQP multi-sensor camera. It is chosen in logistics centers when loading docks need to be monitored from different angles, on factory floors to cover wide production areas from a single pole, or by site management teams to manage multi-directional entry points from one location. It also serves as a replacement module when the field of view of one channel on an existing PNM-9320VQP installation needs to change.

To confirm which lens module matches your existing Wisenet multi-sensor camera and determine the right configuration, contact the Securiturk project team for a quote.
