SLA-2M6000P, 2MP, 6mm Fixed Lens Module for Multi-Directional Cameras

SLA-2M6000P, 2MP, 6mm Fixed Lens Module for Multi-Directional Cameras

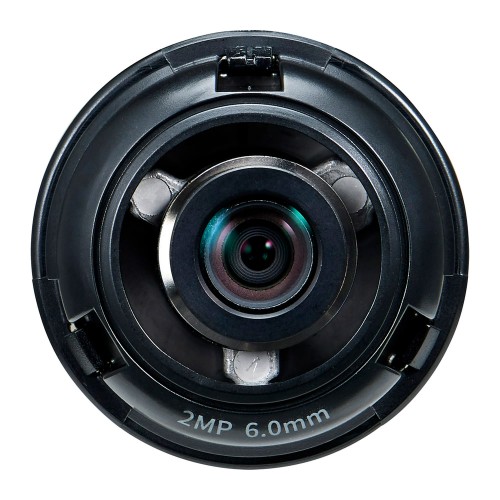

SLA-2M6000P is a 2 Megapixel, 6mm fixed-focal lens module built for the Wisenet PNM-9320VQP multi-directional camera series. Multi-directional cameras rely on separate lens modules pointed at different directions from a single housing, and this module serves as one of those directional units. It fits scenarios where several angles need to be covered from a single pole — a parking structure intersection, a warehouse aisle crossing, or a four-way junction inside a residential site.

• 6mm fixed focus for a stable frame: With no zoom motor to drift over time, the angle set during installation stays locked — a real benefit on steel poles exposed to vibration.
• 0.055 Lux minimum illumination at F2.0: Keeps producing usable images, in both color and black-and-white mode, at loading docks or transition points with weak night lighting.
• 1/2.8" 2MP CMOS sensor, 1945x1109 effective pixels: Delivers enough resolution for plate or face recognition on fixed points that don't require wide dynamic range.
• 50.4° horizontal field of view: Suited to narrow corridors or doorway approaches where you want a focused view rather than unnecessary width.
• Pan -90°~+90°, tilt +10°~+95°, rotate -180°~+180°: Once mounted, the module can be fine-tuned on three axes so the angle can be locked precisely onto the target during installation.
• Ø35.5x35.9mm, 30g compact housing: Small and light enough to fit inside a multi-directional camera body without adding bulk to the overall unit.

This module is not a standalone camera; it's used as a spare part or additional directional unit for compatible multi-directional bodies such as the PNM-9320VQP. Typical use cases include covering multi-way junctions from a single pole in logistics hubs, scanning building corners without blind spots on factory grounds, and monitoring entry/exit ramps from several angles at once in residential site management. It can also be installed directly as a replacement if an existing module fails.

Contact the SECURITURK team to confirm compatibility with your multi-directional housing and the number of modules your project needs — reach out to us for a quote and installation support.
