SPP-C08020E, M12-RJ45 Ethernet Cable (2M)

SPP-C08020E, M12-RJ45 Ethernet Cable (2M)

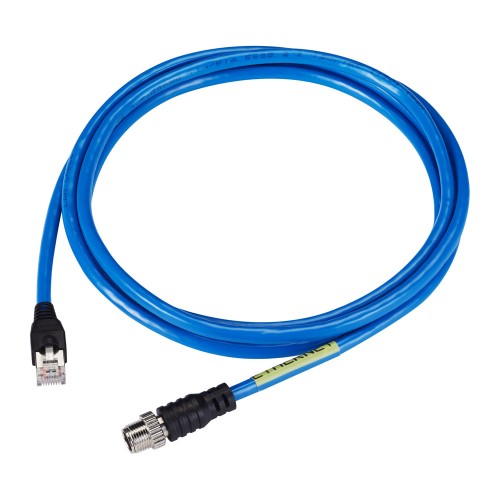

The SPP-C08020E is a 2 meter (6.6ft) CAT6 X-coded Ethernet cable built to connect M12-equipped network cameras to standard RJ45 switching equipment. It's used on outdoor camera installations wherever the connection point at the camera end needs to stay sealed against water and dust — pole-top cameras at yard entrances, roof-edge PTZ units, or facade-mounted cameras exposed to rain are typical examples. With an IP68 protection rating, the connection point stays sealed even in driving rain or dusty conditions.

One end terminates in an M12 8-pin X-code male connector, the other in a standard RJ45 (8P8C) male connector. This lets you run a cable straight from an IP68-rated Wisenet camera's M12 port to a standard RJ45 port on a switch or NVR without needing an adapter or pigtail.

• IP68 protection rating: The M12 connector at the camera end is sealed against water and dust, so pole-top or roof-edge installs directly exposed to rain don't leave the connection point vulnerable.
• 802.3bt PoE++ support: With 60W delivered at the source and 51W available at the device, high-draw equipment like motorized PTZ cameras or heated enclosures can run on data and power over a single cable, eliminating a separate power run.
• 1 Gbps network compatibility, 250MHz TIA bandwidth: High-bitrate 4K camera streams pass without interruption or packet loss; tested bandwidth of 500MHz leaves plenty of headroom.
• Full S/FTP shielding (aluminum foil + 65-70% braid): On factory cable runs passing near motors, panels, or high-voltage lines, this keeps signal integrity intact against electromagnetic interference.
• -10°C to 50°C operating range, CMR-LP jacket: In warehouses, production floors, or semi-open loading docks with temperature swings, the jacket resists cracking and hardening over time.
• Gold-plated contacts, 24 AWG bare copper conductors: Reduces the risk of connection loss from oxidation over time, which matters on high-vibration mounts like conveyor lines or windy pole-top installs.

This cable is a common choice for logistics warehouses connecting IP68-rated cameras at loading docks and ramps, factories with dust or moisture exposure along production lines, retail chains monitoring delivery doors, and residential or commercial sites running pole-mounted cameras at perimeter gates. The PoE++ support is particularly useful on projects with motorized PTZ cameras or heated camera enclosures that need to run on a single cable.

Contact the Securiturk sales team to confirm compatibility with your specific Wisenet camera model and get a quote for your cable run length.
