SBV-140TMW, Tilt Mount Bracket

SBV-140TMW, Tilt Mount Bracket

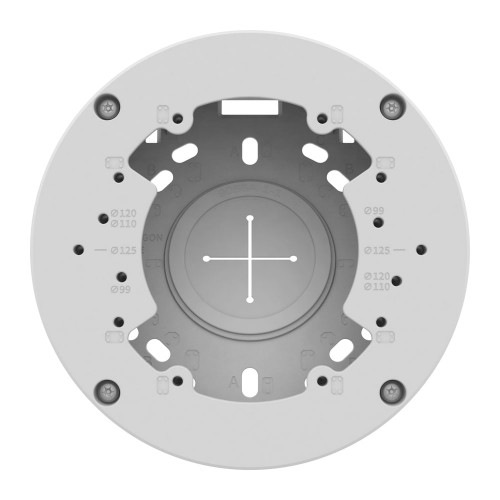

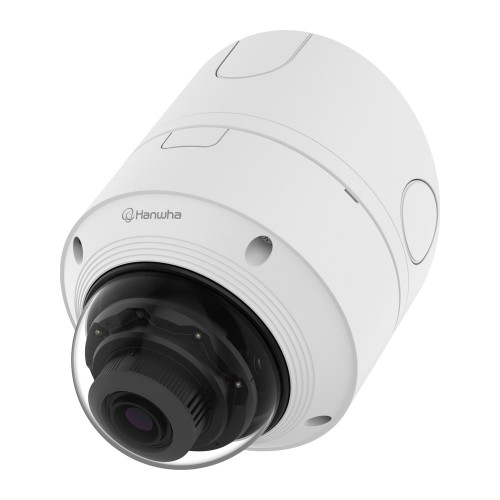

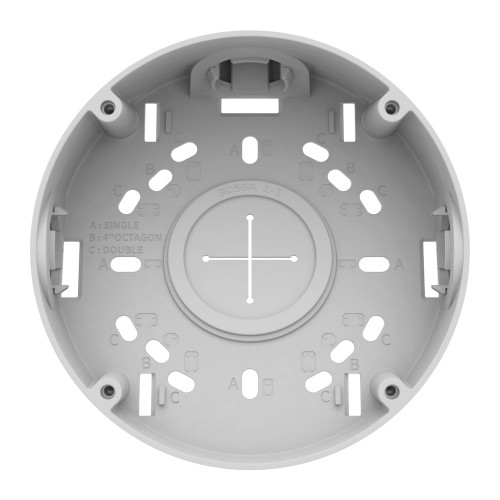

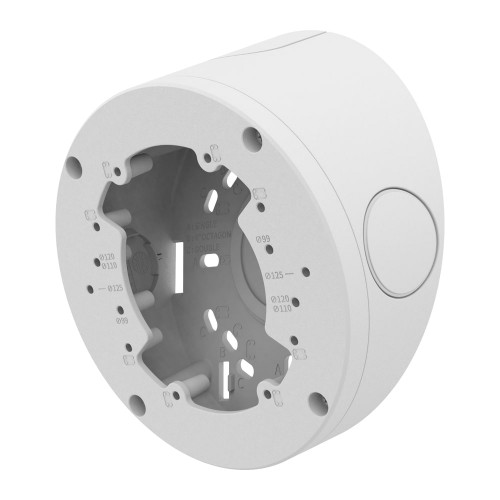

SBV-140TMW is an aluminum tilt mount bracket designed to adjust the viewing angle of Wisenet QNV-C8083R and QNV-C8011R dome cameras. Instead of fixing the camera directly onto a flat surface, this intermediate bracket lets installers set the exact tilt angle needed on a warehouse corridor wall, a production line beam, or a store ceiling joist.

Key Features

• Aluminum body: Resists corrosion and long-term deformation in outdoor mounting conditions.
• RAL9003 white finish: Matches the camera housing color, keeping the mounting point visually clean on facades or ceilings.
• Lightweight 450 g construction: Adds minimal load to the mounting point, avoiding extra strain on ceiling or bracket capacity.
• 19.1 mm (M25) conduit hole: Routes camera cabling neatly through the bracket instead of leaving it exposed, reducing tampering risk.
• TR20 mounting screw standard: Lets installation teams use standard tool kits for quick mounting and servicing.
• ø143.8 mm base diameter: Fits directly onto QNV-C8083R and QNV-C8011R housings without requiring an additional adapter.

This type of tilt bracket is useful in logistics warehouses for angling ramp cameras toward vehicle traffic, in factories for targeting a specific section of a production line, and in retail chains for orienting checkout-area cameras toward customer flow. Facility managers also use it at entry and exit gates where precise camera angling matters.

SBV-140TMW is compatible only with the listed QNV-C8083R and QNV-C8011R models; if you have a different camera model, please confirm compatibility with us before installation. Contact SECURITURK for the right accessory selection and a project quote.
