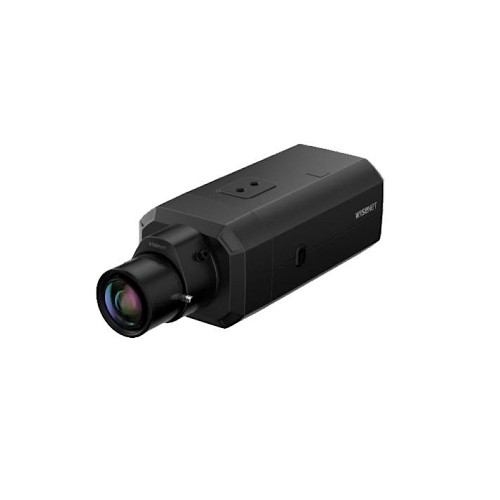

PNB-A7001, 4MP AI Box Camera

PNB-A7001, 4MP AI Box Camera
New Please Ask
PNB-A7001, 4MP AI Box Camera
  • Stock Status: Please Ask
  • Model: PNB-A7001
  • Weight: 700.00g
  • Dimensions: 147.80mm x 73.10mm x 66.60mm
  • SKU: PNB-A7001
  • HS CODE: 8525809190
  • MPN: PNB-A7001

PNB-A7001, 4MP AI Box Camera

PNB-A7001 is the latest AI Wisenet camera format with a unique box design and many other smart features.

Main Features

  • 1/1.8" 4MP CMOS
  • Color : 0.006Lux(F1.2)
  • Auto(ICR) Day Night
  • 120dB WDR
  • Object detection (Person/Vehicle/Face/License plate), Audio detection, Sound classification
  • People counting, Queue management, Heatmap
  • H.265, H.264, MJPEG Video Compression
  • 4MP/60fps    Framre Rate
  • WiseStream II
  • Up to 3 profiles Streaming
  • ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
  • PoE+ : Max 19.50W, typical 15.00W 12VDC : Max 16.50W, typical 12.00W

Wisenet 7 ChipCombines The Technology To See With The Intelligence To Understand

With Wisenet 7 Chip, cameras are now starting to recognize objects. They can describe what is in the image as distinguishable and searchable objects.
With the artificial intelligence Wisenet AI cameras, the objects in the image can be classified, their movements can be perceived, the data related to a particular piece can be recorded and searched as metadata.
In this way, you can say "there is no restriction on pedestrian crossing but the vehicles cannot cross in that direction". Or you can search on the central Video Management Software to find people in the image, people with glasses, etc.



New deep learning based technology

False alarm reduction through Wisenet’s deep learning based algorithm, which supports object classification. It can discard waving trees, video noise, raining, moving shadow, irreverent objects (dog, plastic bag, etc).

New Object Detection

  • New event based on the AI algorithm
  • Detection of four object types simultaneously (Person/Vehicle/Face/License plate)
  • Real-time event trigger (new SUNAPI protocol)


Attributes for forensic search

  • AI camera sends metadata including attributes of objects, coordinates information and setting value to backend server
  • Person, Face, Vehicle category and so on


Real-time object Image capture for re-identification

  • BestShot: Best crop image of “Person, Vehicle, Face, License plate” in the scene
  • JPEG snapshot type, select option
  • This function helps to load distribution of backend server
  • Useful with license plate analyzing or face analyzing server


    CCTV Product Class
    Product TypeCamera
    Operation TypeNetwork (IP)
    Production SeriesP Series
    Camera Specifications
    Resolution (Megapixels)4MP
    Camera TypeBox Type
    Power Option12VDC PoE+
    Shutter Speed (fps)60fps
    Outdoor?Yes. with Housing
    Day and Night FunctionTrue Day Night
    Camera Lens TypeNo. Buy separately
